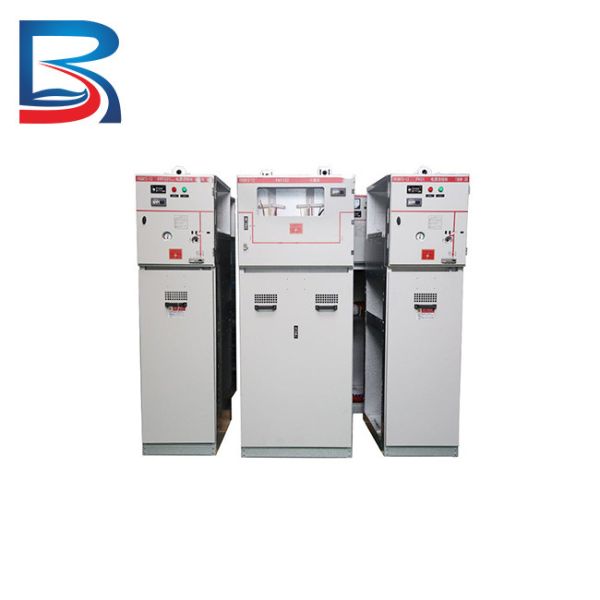

Drawout High Tension 12KV Industrial Electrical High Voltage Switchgear
Product Description
- The switchgear is designed to operate at high voltage levels, making it suitable for use in industrial electrical power systems.
- The drawout design allows for easy maintenance and repair, reducing downtime and increasing productivity.
- The switchgear is highly reliable and efficient, with advanced features such as real-time monitoring, fault detection, and self-diagnosis capabilities.
- The switchgear is designed to be flexible and adaptable, with the ability to be customized according to the specific requirements of the power system.
- The switchgear is easy to install and operate, with a user-friendly interface that allows for intuitive control and monitoring.
- The switchgear is designed to be compact and space-saving, making it ideal for use in environments where space is at a premium.
- The switchgear is built to withstand harsh operating conditions, with a rugged and durable construction that ensures long-term reliability.
- The switchgear is designed to be safe and secure, with advanced protection features that prevent electrical shock and other hazards.
- The switchgear is highly cost-effective, with a low total cost of ownership and a long service life that ensures a high return on investment.
- The switchgear is backed by excellent customer service and technical support, ensuring that customers receive the assistance they need to keep their power systems running smoothly and efficiently.
Main Technical Parameters
| Main Technical Parameters | Specifications |
| Rated voltage | 40.5KV |
| Rated frequency | 50Hz |
| Rated current of the main busbar | 1250A, 1600A, 2000A |
| Rated insulation level 1min power frequency withstand voltage | 95KV between phases and relative, 115KV for the first isolating joint |
| Lightning impulse withstand voltage | 185KV between phases and relative, 215KV for the first isolating joint |
| 1min power frequency withstand voltage of the auxiliary control circuit | 2KV |
| Dimensions (widthdepthheight) | 1400*2800(3000)*2800 |
| Rated current of branch busbar | 630A, 1250A, 1600A |
Marketing
Our business scope covers 6 continents and over 50 countries.
Company Profile
1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.
2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.
3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,
4.A complete product development department, design team.
5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.
6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.
7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.
8.More than 10 product invention patents and utility model patents.
9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."
Why Choose Us
1.Our Expertise
2.Quality Products/Services
3.Competitive Pricing
4.Innovation
6.Possibles
7.Authorization by ABB Schneider Siemens
